Ventolo
-
Body and cover in ductile cast iron, PN 40 bar rated..
Float in stainless steel AISI 304 or 316.
-
Standard connection 1", flanged on request. Flanges according to EN 1092/2.
-
Max. pressure 40 bar.
Min. pressure 0,1 bar
Treated water max. 60°C.
-
Designed in compliance with EN-1074/4.
-
-
The CSA single function, automatic air release valve Ventolo will ensure the proper operation of the system allowing the release of air pockets accumulated during working conditions.

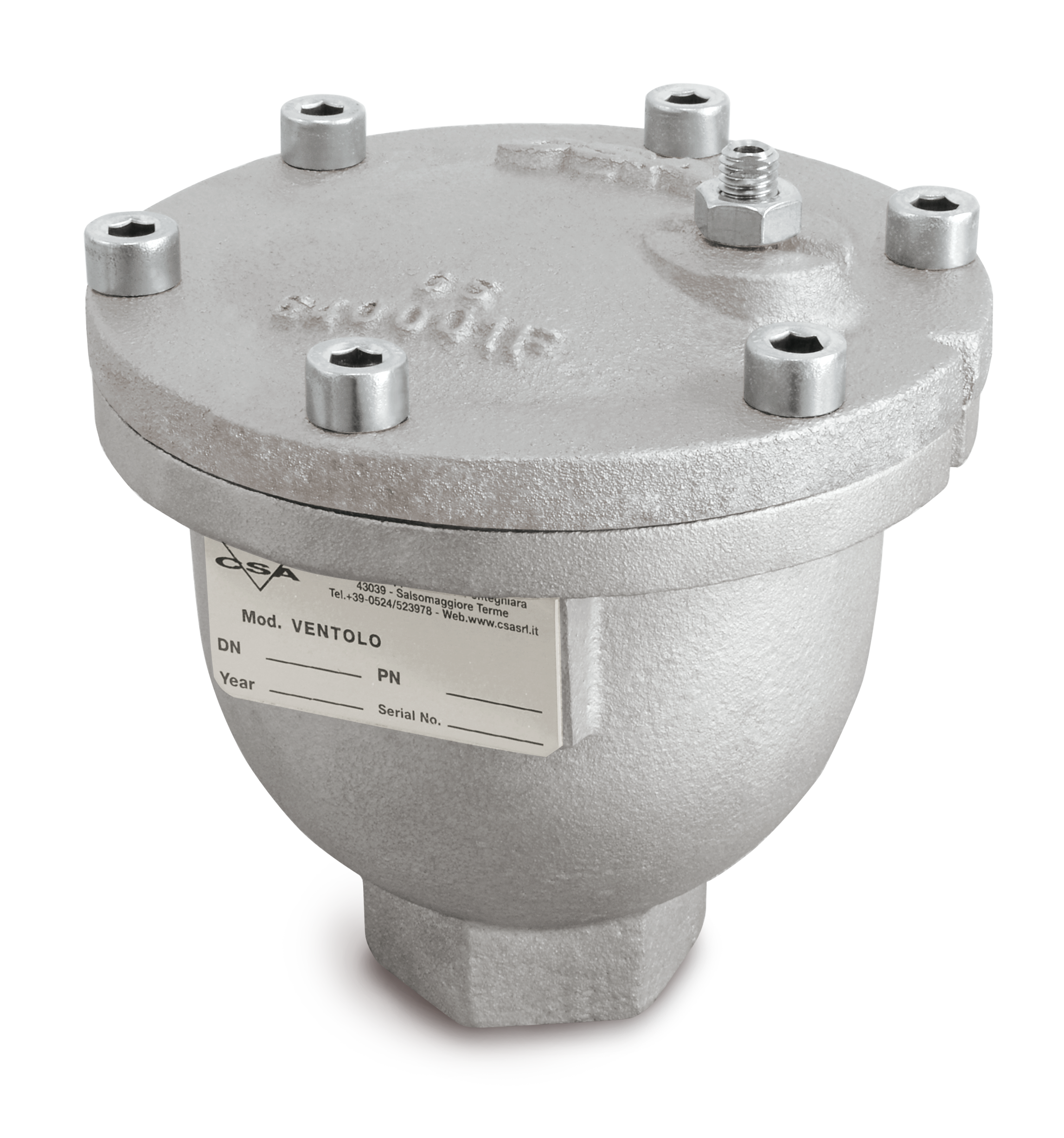

Ventolo ST
The CSA single function, automatic air release valve Ventolo will ensure the proper operation of the system allowing the release of air pockets accumulated during working conditions. Thanks to the nickel coating of the main components and special gaskets, it is suitable for high temperatures and pressures up to 40 bar.
-
Body and cover in nickel-plated ductile cast iron, PN 10-16-25-40 bar rated.
Float in stainless steel AISI 304 or 316.
-
Standard connection 1", flanged on request. Flanges according to AS4087.
-
Max. pressure 40 bar.
Min. pressure 0,1 bar
Treated water max. 100°C.
-
Designed in compliance with EN-1074/4.
Flanges drilled to AS 4087
-
-
